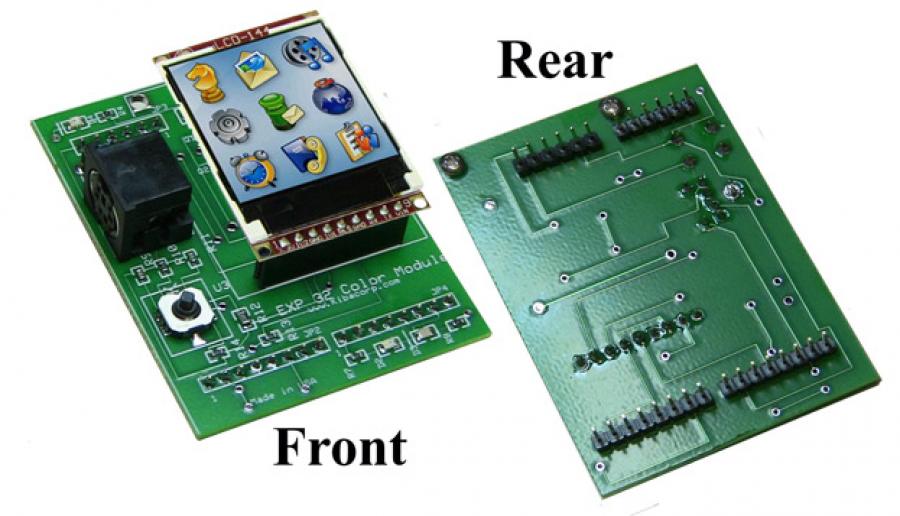

Carrier Board with Display Module

Carrier Board with Display Module
Click to enlarge
Price: $78.95
Product ID : SKU17112

Purchase

Description

From the article “Using Color Graphics and Widgets for the 32-Bit Experimenter” by Thomas Kibalo. (see April 2012 Nuts and Volts)

The carrier module provides a color LCD module serial interface capability (Color Display Module included) for the 32 Bit experimenter. The carrier module supports sound generation, a multi-position (five) input switch capability, keyboard PS/2 interface and dual user controlled green and red Leds . Sound is done through an on-board audio amplifier and mini-speaker. The multi-position switch is a five input switch position with up, down, left, right and press position. The PS/2 interface supports interconnetion with a full AT 101 key keyboard.
