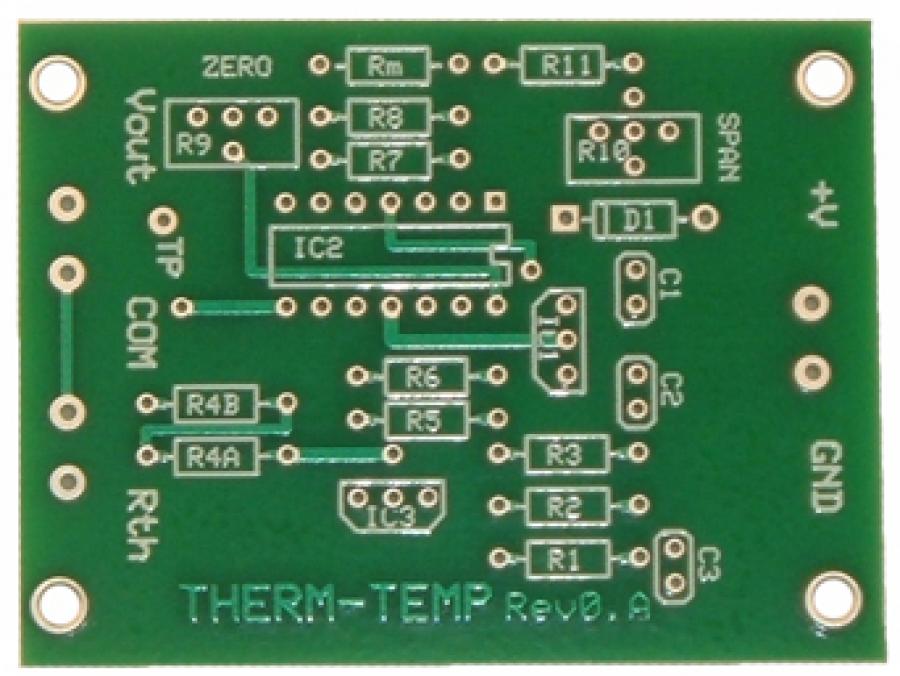

Temperature Gauge PCB

Temperature Gauge PCB
Click to enlarge
Price: $17.95
Product ID : SKU16772



From Jim Stewart's article " Temperature Gauge Project"

Use this board to build a temperature gauge that ranges from 0°C to 50°C using a thermistor in an analog circuit. Why use a thermistor? Two words: temperature transducers. Along the way, we will look at various ideas such as how to linearize a thermistor, the effect of thermistor self-heating, and zero and span adjust in a gauge.

Includes an article reprint and parts list.
