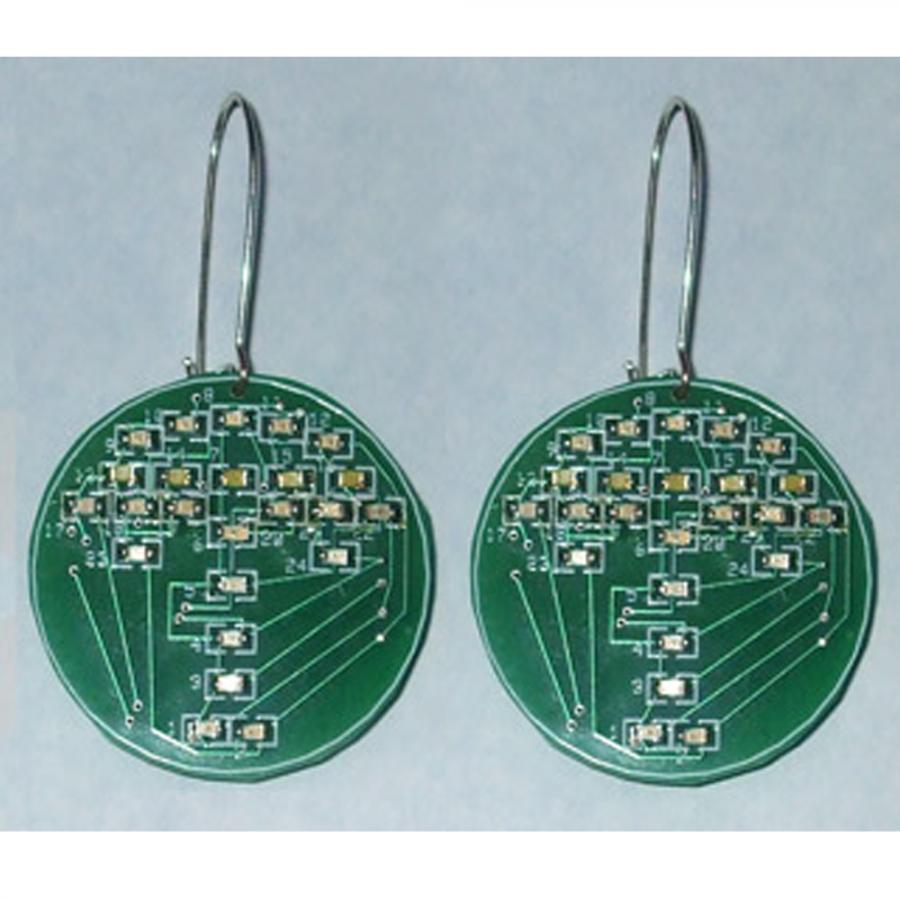

Fireworks Earrings

Of all the articles I have written, it seems that the most popular one was the December 2014 Christmas Earrings project. I received a ton of emails asking me to make other types. I thought it was interesting that the version designed using a microprocessor and surface-mount (SMT) components was far more popular than the simple one using through hole parts.

Since the Fourth of July is coming, I thought this would be the perfect time to introduce some new designs for other holidays and occasions, except this time I would make the earrings adaptable. These new circular versions include fireworks, a Jack o’ lantern for Halloween, and the timeless happy face that can actually change expressions — sad, happy, mischievous, winking, surprised, disapproving, etc ...

Kit Includes:

• 2 – 12 mm Battery Holders
• 2 – PIC 16F627 (Programmed)
• 10 – White SMT LEDs
• 8 – Yellow SMT LEDs
• 18 – Red SMT LEDs
• 12 – Blue SMT LEDs
• 4 – Transistors Bipolar — BJT NPN
• 16 – 0805 100 ohm Resistors
• 2 – 0.1 µf SMT Capacitors
• 2 – CR1225 Batteries
• 2 – Round Printed Circuit Boards
• 2 – Fishhook Earrings

Click Here to read the rest of the article.
