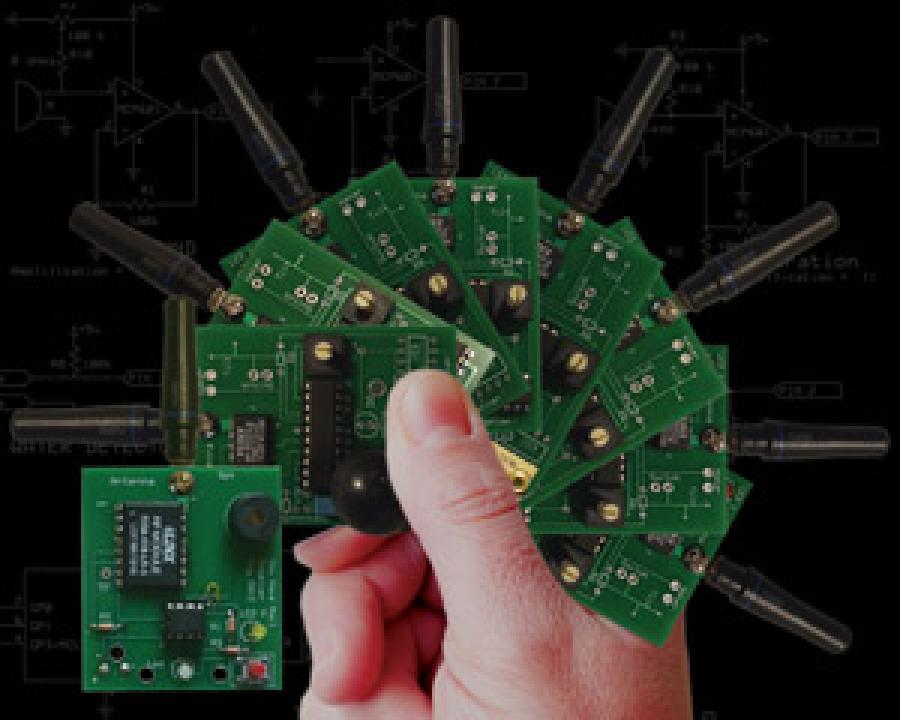

Super Detector Circuit PCB & Chip Set

Super Detector Circuit PCB & Chip Set
Click to enlarge

More images

Click to enlarge
Price: $32.95
Product ID : SKU17209

Purchase

Description

As seen in our October 2013 issue.

Build the Wireless Super Detector, by Ron Newton

This project started out with a singular focus and grew into a multi-purpose circuit with all kinds of sensors for detection and alarm applications.

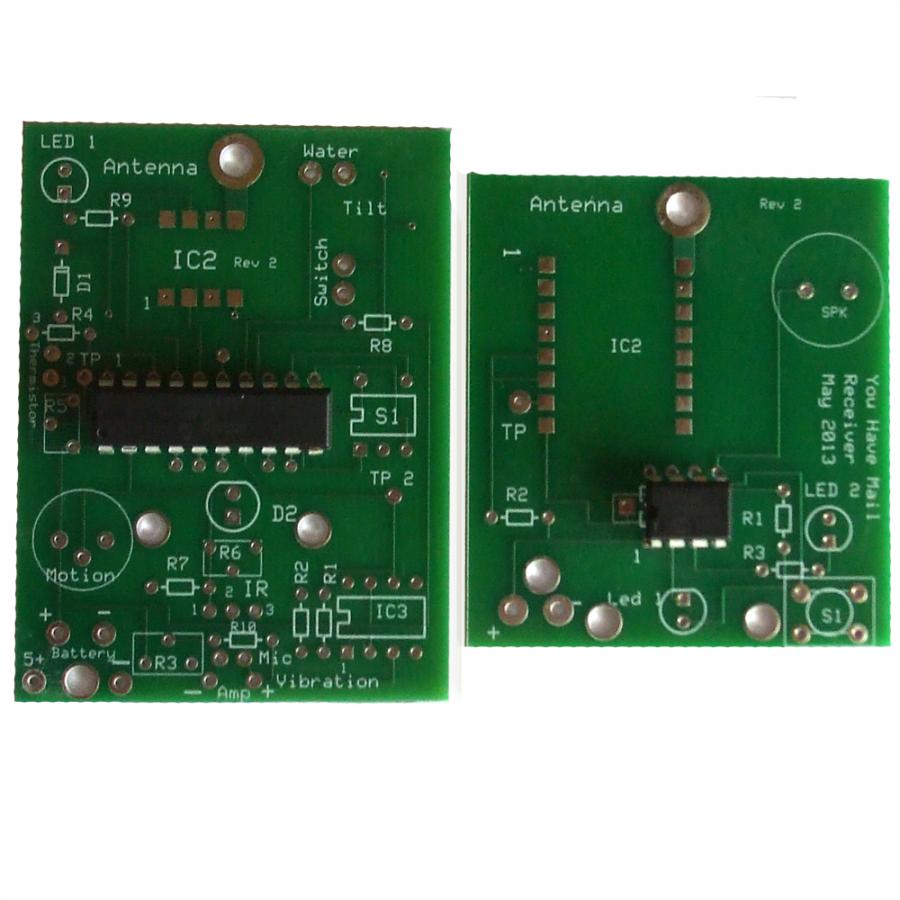

Set includes:
1 Transmitter PCB
1 Receiver PCB
1 Transmitter Programmed Chip
1 Receiver Programmed Chip



PROJECT DOWNLOAD PAK (file includes Schematic, PCB, ASM, Codes)

* If using the IR Transmitter Circuit, an addition chip and board will be needed. Please contact Ron Newton by email at: sjnewt@att.net
