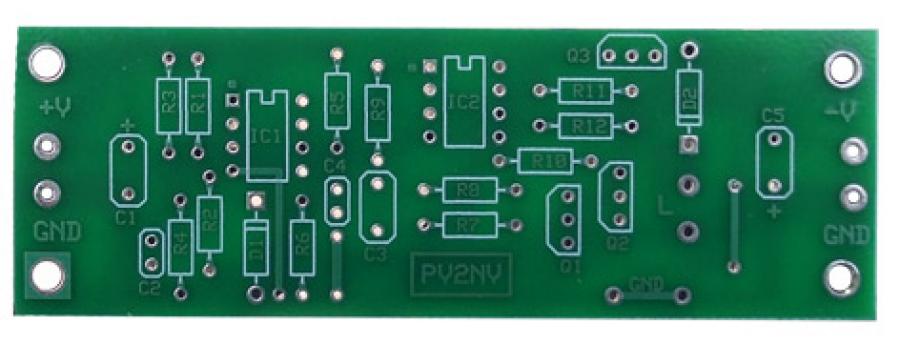

Inverting DC-DC Converter PCB

Inverting DC-DC Converter PCB
Click to enlarge
Price: $17.95
Product ID : SKU17157

Purchase

Description

Also available as a complete kit

As seen in our January 2013 issue.
If  you need +12V and -12V, but all that's available is +12V, then this project is for you. The Inverting DC-DC Converter gives you -V out when you put +V in, and works over a range of voltages without adjustment.  It's a easy to build voltage mirror that can supply over 100 mA without a significant drop in voltage.

For an in-depth look at our Inverted DC-DC Converter, please see the article in the January issue of Nuts & Volts.

Includes:

1 – Printed circuit board (size 1.25 x 3.75)
