Wireless Taillight Kit

Wireless Taillight Kit
Click to enlarge
Price: $171.95
Product ID : SKU16960

Purchase

Description

As seen in our July 2010 issue of Nuts & Volts Magazine. Read the article at the link below!

Wireless Trailer Taillights by Ron Newton

Never wire trailer lights again! This kit includes the custom parts you’ll need to build your wireless taillight system.

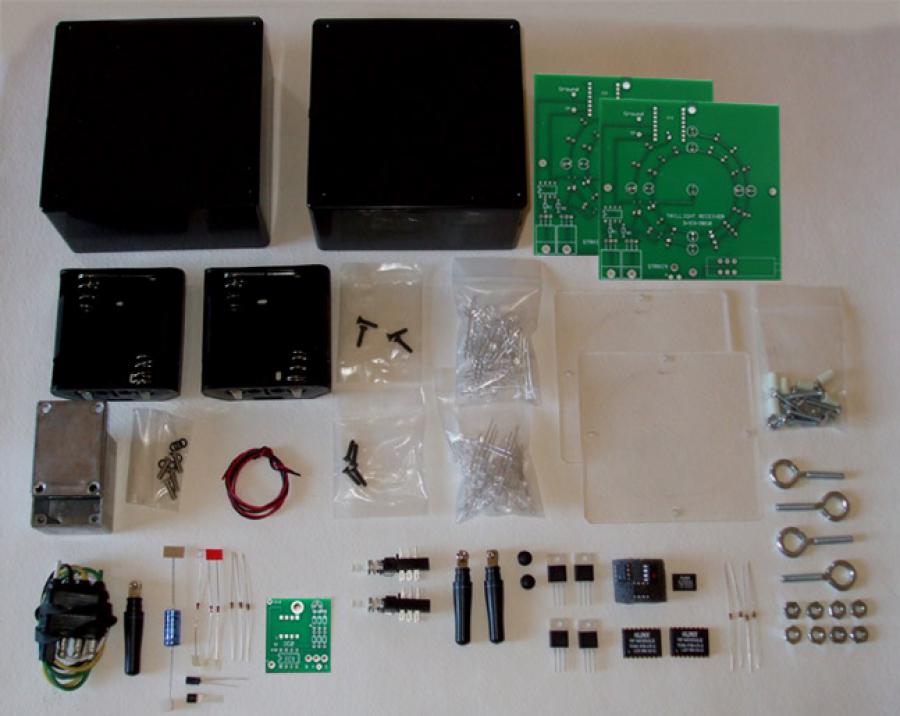

Kit Includes:

Transmitter

  • 1 – Antenna (418 mhz 1/4)
  • 1 – Cable (4 connector male)
  • 1 – Capacitor (470 uF 16 volts)
  • 1 – Capacitor (10 uf 16 volts)
  • 1 – Chassis (Aluminum 2.7 x 1.5)
  • 3 – Diodes (1N914 200 MA)
  • 1 – IC 1 (Programmed, 12F508)
  • 1 – IC 2 (TXM-418 LR)
  • 3 – R1-2-3- (10K 1/8 watt)
  • 1 – VR1 (3 VOLT 100 MA)
  • 1 – PCB

Receivers (2)

  • 2 – Antenna (418 mHz 1/4)
  • 2 – Battery Holder (D size)
  • 1 – Power leads (12" Red & Black Wire)
  • 2 – Chassis (4 x 4 x 2)
  • 4 – Eyebolts (3/16 x 1")
  • 8 – Eyebolts Nuts (10/24 Nut)
  • 1 – IC1 (Programmed, 12F508)
  • 1 – IC2 (RXM-418-LR)
  • 66 – LED (Red, Super Bright)
  • 2 – Lens (1/8" 4" x 4")
  • 2 – Plug (1/4" round)
  • 4 – Q1-Q2 (TIP31A)
  • 4 – R1-R2 (10K 1/8 watt)
  • 6 – Screws (6/32 3/4")
  • 2 – Screws (6/32 3/8")
  • 8 – Nuts (6/32-3/16)
  • 6 – Standoffs (3/8" #6)
  • 2 – Switch (Push)
  • 2 – PCBs

A Partial Kit is Available: Wireless Taillight PCB Set & Programmed Chips
