This item has been discontinued by the manufacturer or is no longer available. We are retaining it in our store to support our customers with legacy information, downloads and photos for reference.

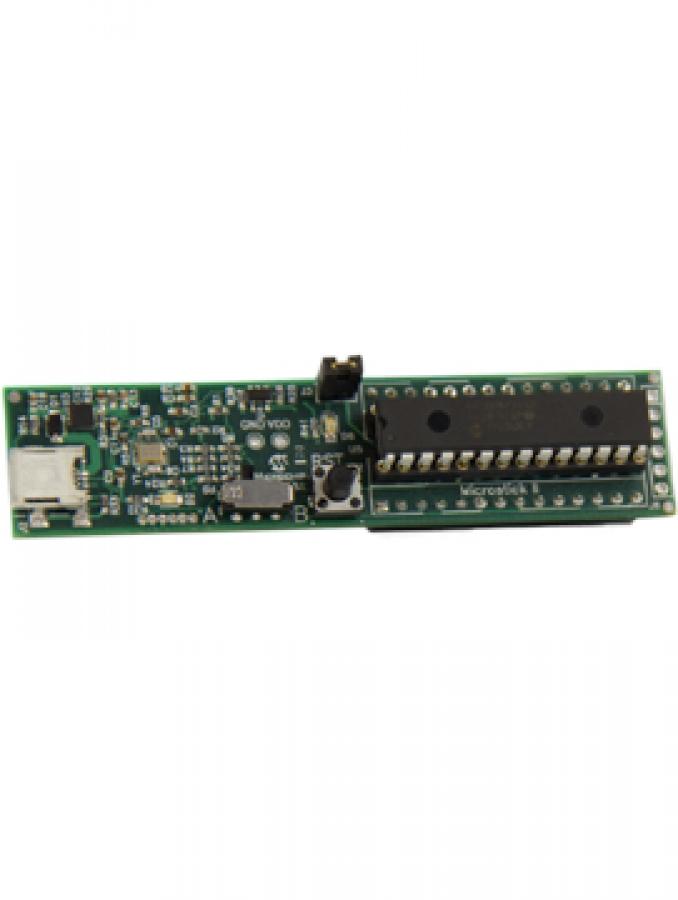

Microstick II delivers a complete development hardware platform for Microchip’s 16-bit and 32-bit microcontrollers and digital signal controllers. It’s the perfect solution to those looking for a low-cost, easy-to-use development platform.
The USB-powered kit includes an on-board debugger/programmer, a DUT socket for easy device swapping, a user LED and reset button. It is designed for insertion into a standard prototyping board for easy connection to additional circuitry. The kit is extremely portable as well and is still about the size of a stick of gum!
Key Features:
- Low Cost
- Integrated USB programmer/debugger — No external debugger required
- USB Powered — Ease of use, No external power required
- MPLAB support
- DUT Socket — Flexible, Easy device replacement
- 0.025” Pin headers — Enables plug-in to Breadboard with room for jumper wires
- Easy access to all device signals for probing
- Small size — Smaller than a stick of gum at 20 x76mm — Easily Portable
- On board User LED and Reset Switch
- Free demo code
Kit Contents:
- Microstick II Board
- USB Cable
- 2 – 1x14 header pins for proto board use
- 1 – PIC24FJ64GB002
- 1 – PIC24HJ64GP502
- 1 – dsPIC33FJ64MC802
- 1 – PIC32MX250F128
- Info Sheet with installation instructions and board schematic
Supported Parts:
Microstick II supports all 3.3V PIC24FJ, PIC24H, dsPIC33, and PIC32 SPDIP packaged devices.
