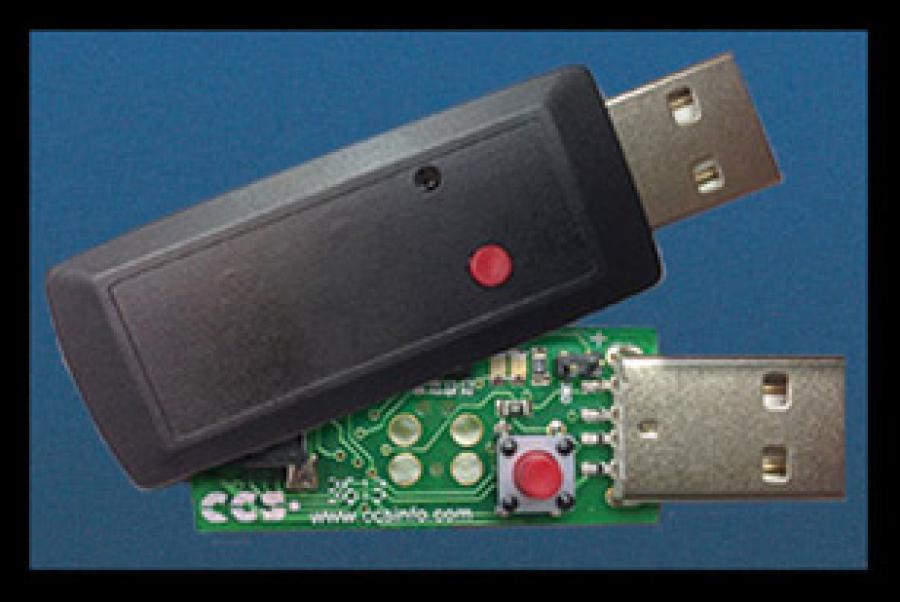

Rapid USB Prototyping Stick

Rapid USB Prototyping Stick
Click to enlarge
Price: $64.95
Product ID : SKU17274

Purchase

Description

As seen in our November 2014 issue of Nuts & Volts Magazine.

PIC16F1459 Single-Chip IDE Compiler included.

Prototyping board with direct access via USB port. Quickly develop code with useful examples and user selectable functions all in one small package. No device programmer required — includes onboard programming capabilites.

Features:

  • External Connector with Three Conductors for Selectable Functions
  • TTL RS232
  • Analog In
  • Analog Out
  • PWM
  • I2C
  • Pushbutton
  • Two LEDs (Red and Green)
  • Text I/O to PC
  • Easy Graphing of any PIC® MCU Data
  • 8 Internal I/O Pins (5 Can Be Analog)
  • PIC16F1459 Has 8K Instructions, 1k RAM and Runs at 12 MIPS
  • 10-bit ADC Inputs over 0-5V
  • 0-5V Digital Input/Outputs
  • 5-bit DAC Output
  • 3 Timers with Overflow Interrupts
  • Two PWM Outputs
  • I2C Master and Slave
  • UART

Rapid USB Includes:

  • Rapid USB Dongle
  • 6 ft. 2.5mm Stereo Cable (Non-terminated)
  • Manual on CD
