Inverting DC-DC Converter Kit

Inverting DC-DC Converter Kit
Click to enlarge
Price: $29.95
Product ID : SKU17156

Purchase

Description

Also available as Printed Circuit Board

As seen in our January 2013 issue.

If  you need +12V and -12V, but all that's available is +12V, then this project is for you. The Inverting DC-DC Converter gives you -V out when you put +V in, and works over a range of voltages without adjustment.  It's a easy to build voltage mirror that can supply over 100 mA without a significant drop in voltage.

For an in-depth look at our Inverted DC-DC Converter, please see the article in the January issue of Nuts & Volts.

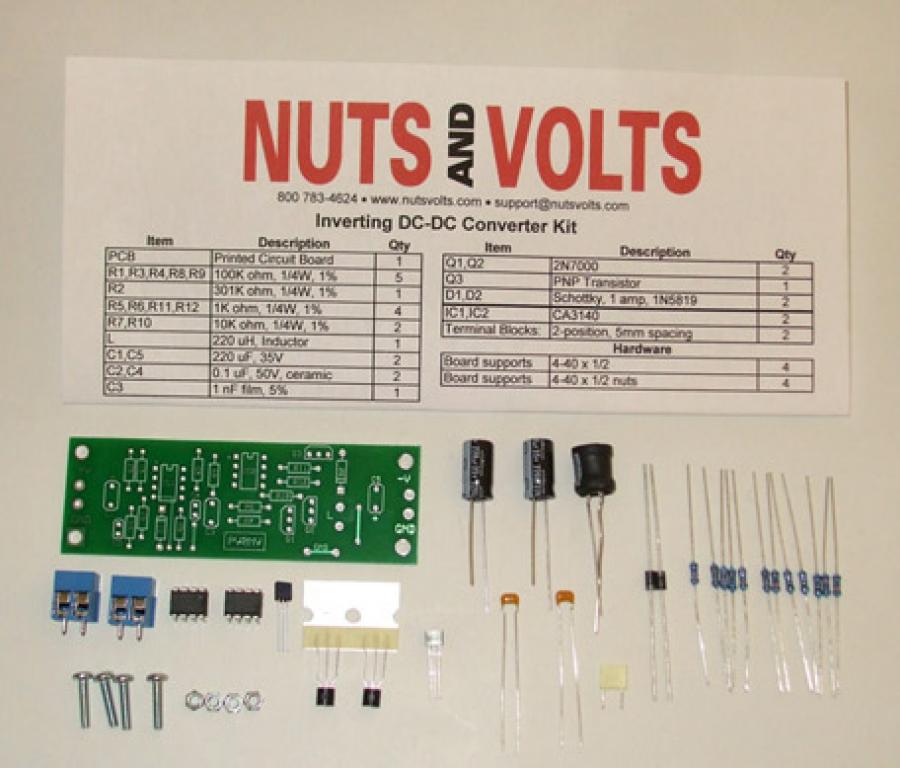

Kit includes:

1 – Printed circuit board (size 1.25 x 3.75)

1 -100K, 1/4W, 1% resistor

1 – 301K, 1/4W, 1% resistor

4 – 100K, 1/4W, 1% resistors

4 – 1K, 1/4W, 1% resistors

2 – 10K, 1/4W, 1% resistors

1 - 220 uH   inductor

2 - 220 uF, 35V capacitors

2 - 0.1 uF, 50V, ceramic   capacitors

1 - 1 nF film, 5%   capacitor

2 - 2N7000 MOSFET

1 - PNP Transistor

2 - 1 amp, 1N5819 Schottky diodes

2 - CA3140 IC Op amps

2 - Terminal Blocks

4 - 4-40 x 1/2 board supports

4 - 4-40 x 1/2 nuts, board supports
