RF Carrier Module Kit

The RF Carrier module is featured in Nuts and Volts Dec 2012 article

"Build your own Wireless Sesnor Netwrok Using Xbee and the 32 bit Experimenter".  The Kit allows for the XBee series 1 805.4 (ISM 2 band) RF unit from Digi International to function as a part of wireless sensor base station when used with the 32 Experimenter or as a standalone remote sensor RF module.  The XBee module itself is not supplied can be purchased from numerous Nuts and Volts vendors. The PCB board is SMT and completely assembled and tested. The only assembly is adding external header and connectors.

Click to view manual.

  Kit includes:

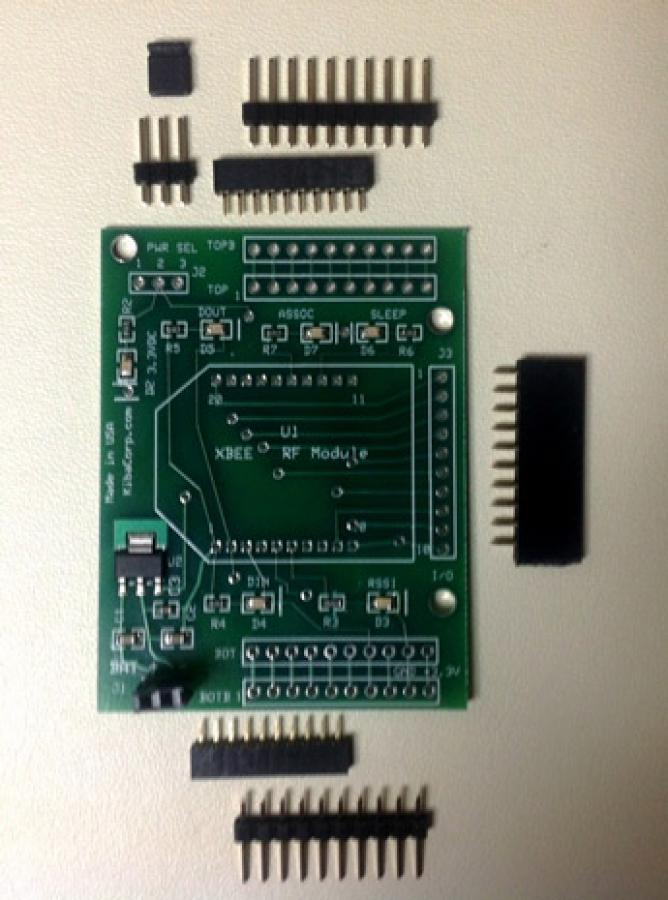

1. Fully assembled SMT PCB assembled and tested

2. Two 10 pin male .100 headers

3. One 3 pin male .100 header

4. Two 10 pin female 2 mm headers ( for XBee)

5. Jumper for power selection

6. One ten pin female .100 header for carrier I/O.

7. Link to full assembly manual.
