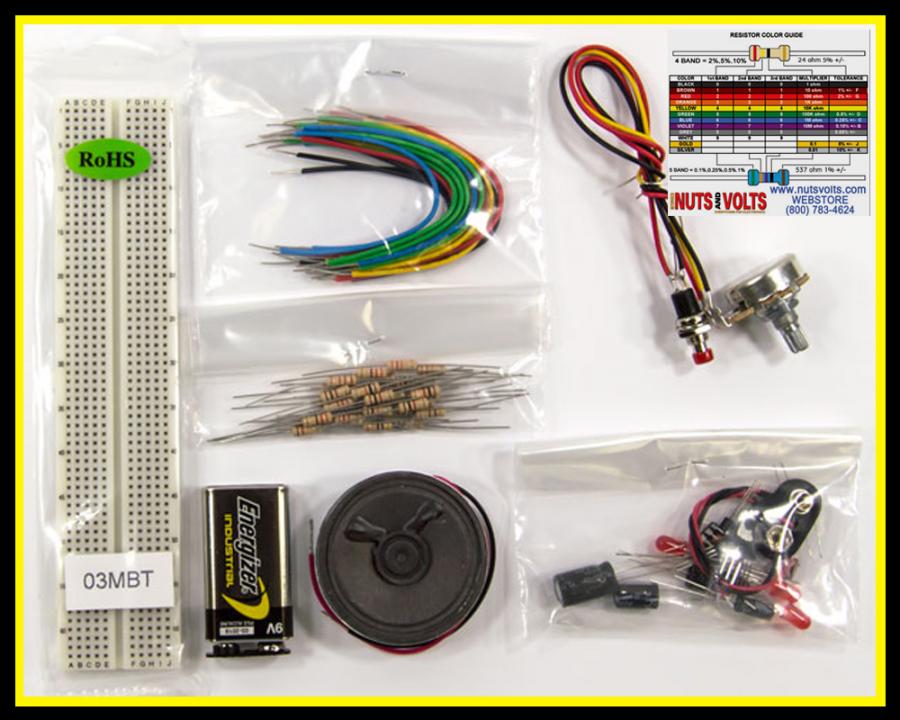

Learning Lab 1 Replacement Components

Part's list

QTY                        Item Description

1                              RES 1/2 W 5% 10 OHM

2                              RES 1/2 W 5% 47 OHM

2                              RESISTOR 1/2 W 5% 100 OHM

3                              RES 1/2 W 5% 220 OHM

3                              RES 1/2 W 5% 330 OHM

1                              RES 1/2 W 5% 470 OHM

5                              Resistor 1/2 W 5% 1K

1                              RES 1/2 W 5% 2.2 K OHM

1                              RES 1/2 W 5% 3.3 K OHM

2                              RES 1/2 W 5% 6.8 K OHM

3                              RES 1/2 W 5% 10 K OHM

1                              RES 1/2 W 5% 16 K OHM

2                              RES 1/2 W 5% 33 K OHM

1                              RES 1/2 W 5% 120 K OHM

1                              RES 1/2 W 5% 470 K OHM

2                              CAP DISK 50 V .01uf

2                              CAP DISK 50 V MULTI-LAYER .1U

1                              CAP ELEC RAD 050V 10uF

2                              CAP ELEC RAD 050V 100uF

1                              CAP ELEC RAD 025V 1000uF

1                              POT PNL SERT 1/2W 100K W/WIRE

1                              SCR 400V 4A /11C106B

1                              Silicon Rectifiers - Max Curre

3                              LEDs STANDARD 5mm Red

1                              BATTERY HLDR 9 V "T" TYPE

1                              OPTO PHOTO CELL /

1                              WIRES (20) 4" 22ga SLD

1                              Integrated Circuits / Timer

1                              SWITCH MOM RED NO W/WIRE "bom"

2                              Transistors - NPN Gen. Purp.

2                              Transistors - PNP Gen. Purp.

1                              SPEAKER 8 OHM W/LEAD

1                              Breadboards Solderless Model M

1                              BATTERY 9 V ALKALINE

1                              Resistor Color Guide
