Arduino Proto Shield Alarm Clock Kit

Arduino Proto Shield Alarm Clock Kit
Click to enlarge
Price: $24.95
Product ID : SKU17160

Purchase

Description

Learn to do a complete project development cycle for the Arduino. Begin by building a Real Time Clock circuit based on the DS1307 on a breadboard on an Arduino shield. Next you transfer this design to a shield pcb. Finally, you learn how to design a custom printed circuit board, how to have it manufactured for you from a PCB fabrication house, and how to source your own parts.

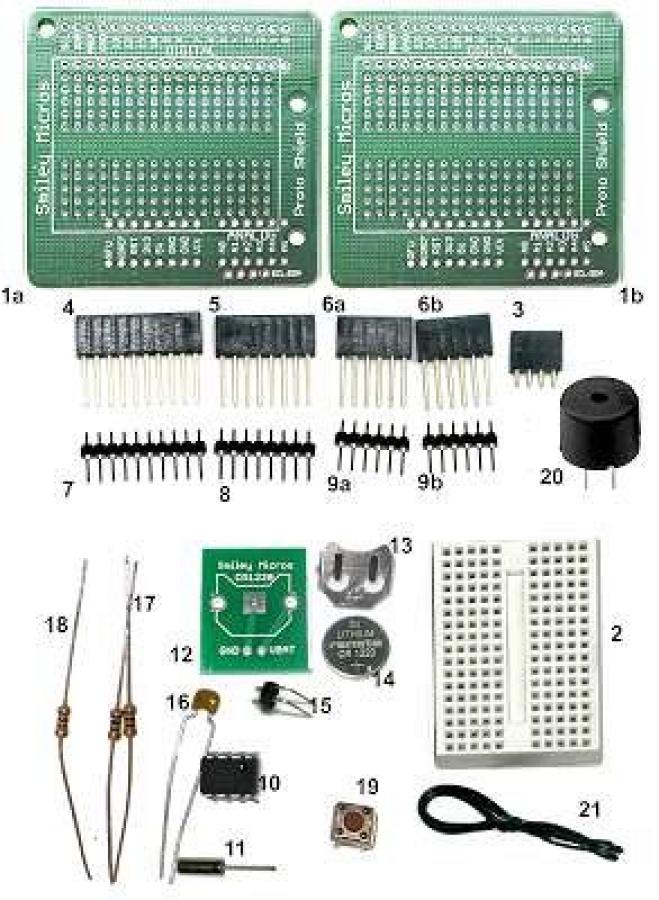

Kit Includes:

  • 1a, 1b*  2 – Proto Shield PCBs
  • 2*  1 – Mini Breadboard
  • 3*  4-pin Female Header
  • 4*, 5*, 6a*, 6b*  Shield Headers
  • 7*, 8*, 9a*, 9b*  Male Headers
  • 10*  1 – DS1307 RTC IC
  • 11*  1 – 32.768 Watch Crystal
  • 12*  1 – Breadboard Battery PCB
  • 13*  1 – Battery Holder 12mm Coin
  • 14*  1 – Battery CR1220
  • 15*  1 – 2-pin 90 Degree Male Header
  • 16*  1 – Cap 0.1 µF
  • 17*  2 – Resistor 2.2K ohm
  • 18*  1 – 10K ohm Pull Up Resistor
  • 19*  1 – Pushbutton
  • 20*  1 – Piezo Buzzer
  • 21*  1 – 2-Feet Uncut Jumper Wire
